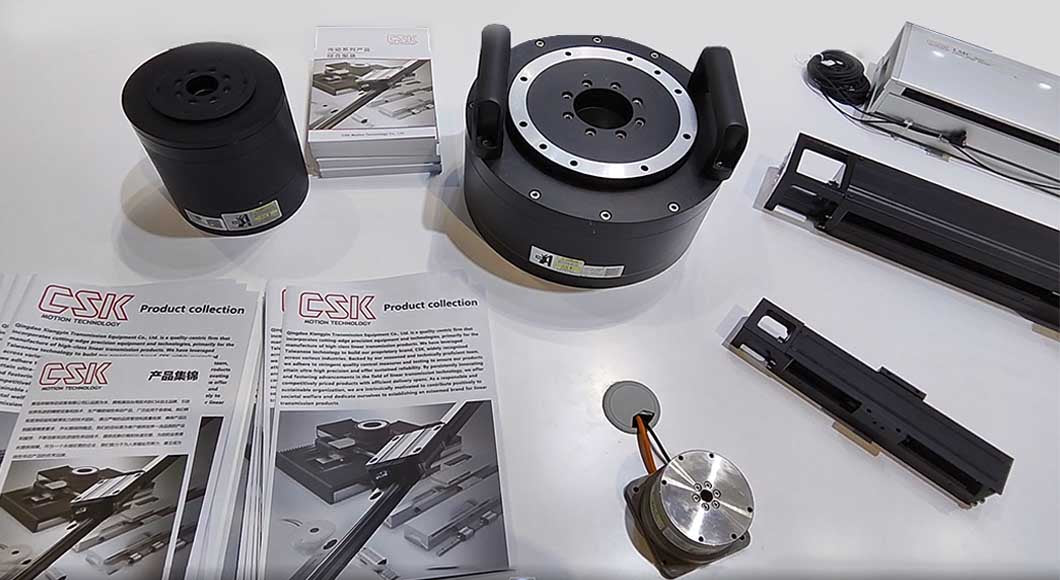

Comparison of the advantages of torque motors and linear motors

Comparison of the advantages of torque motors and linear motors

Torque motors and linear motors have unique advantages and characteristics. They play a key role in different industrial applications. This article will explore the advantages of these two motors and analyze their applicability.





1.Basic Introduction

Torque motors can generate large torque. They are usually used in scenes that need rotational motion. Such as textile machinery, engraving machines, and machine tools. Torque motors have the characteristics of high static and dynamic load stiffness, low speed but high torque, strong overload capacity, and fast response speed. These characteristics make them the first choice in rotational motion scenes.

Linear motors are devices that convert electrical energy into mechanical energy of linear motion. It can achieve linear motion without any intermediate conversion mechanism. Linear motors are widely used in the fields of automated production lines and precision measuring equipment. It has the advantages of simple mechanical structure, precise motion control, unlimited travel, and smooth operation.

2.Advantages of Torque Motors

2.1. High static and dynamic load stiffness

Torque motors are known for their high static and dynamic load stiffness. This feature enables them to perform well in scenarios that need high-precision positioning and high repeatability. During high-speed rotation, torque motors can maintain stable output to ensure stable operation of the equipment. Also, high static and dynamic load stiffness also helps to reduce vibration and noise during the operation of the equipment and increase the service life of the equipment.

2.2. Low speed and high torque

Torque motors have unique advantages in scenarios that need high torque output. It can generate large torque at a lower speed to meet the needs of various heavy-load conditions. This feature makes it widely used in textile machinery, engraving machines, machine tools and other fields.

2.3. Strong overload capacity and fast response speed

Torque motors have strong overload capacity and can maintain stable operation even when the load exceeds the rated value. This feature makes torque motors more adaptable when dealing with sudden loads. At the same time, the torque motor has a fast response speed and can quickly respond to changes in control signals to achieve fast start and stop.

2.4. Wide change performance

Torque motors have a wide speed range and soft mechanical characteristics. It can be flexibly adjusted according to actual needs. This change in performance enables the torque motor to adapt to various complex working conditions, providing greater flexibility for practical applications. At the same time, the torque motor has good linear characteristics and small torque fluctuations. This helps to improve the control accuracy and stability of the equipment.

3.Advantages of Linear Motors

3.1. Simple mechanical structure

Compared with the system of traditional rotary motors with linear transmission mechanisms, the structure of linear motors is greatly simplified. It removes intermediate transmission mechanisms such as couplings, lead screws, gear racks, and belts. This reduces the complexity and maintenance cost of the system. Linear motors directly convert electrical energy into linear motion. The entire system is compact and efficient.

3.2. Precise motion control

Linear motors perform well in motion control. It can control position, speed, and acceleration very accurately. Also, linear motors can respond quickly to changes in control signals. This enables high-precision motion control. Linear motors have significant advantages in applications that need high positioning accuracy and repeatability. Such as semiconductor manufacturing, precision measurement, and other fields.

3.3. Unlimited travel

The travel of a linear motor is theoretically limited only by the length of its power supply track, so a very long travel can be achieved. This is very beneficial for scenarios that need long-distance linear motion. Such as conveyor lines and automated warehouses. Also, linear motors have no mechanical contact and wear. Thus, their motion life is long and maintenance costs are low.

3.4. Smooth operation

Linear motors have no mechanical contact and friction, and run smoothly and with low noise. This makes linear motors excel in applications that need high precision and low noise, such as precision measurement and medical equipment. Also, linear motors have large acceleration, which can achieve fast response and high-speed movement. This further improves the operating efficiency of the system.

4.Application Scenarios of Torque Motors and Linear Motors

Torque motors are mainly suitable for scenarios that need rotational motion. Such as textile machinery, engraving machines, and machine tools. In these applications, the high static and dynamic load stiffness, large torque output, and wide change performance of torque motors make them the best choice.

Linear motors are suitable for scenarios that need linear motion. Such as automated production lines, precision measuring equipment, and medical equipment. In these applications, linear motors have the advantages of simple mechanical structure, precise motion control, unrestricted travel, and smooth operation.

In some special applications, torque motors and linear motors can also be used in combination with each other. For example, some complex systems need simultaneous rotation and linear motion. Through reasonable system design and control strategies, the performance and efficiency of the system can be improved.

5.Summary

After comparing torque motors and linear motors, we can see that each has its own advantages. In short, torque motors and linear motors are two important types of motors. They have broad application prospects in the field of industrial automation. Through technological innovation and application expansion, they will continue to contribute to industrial automation.
