The accuracy level of helical rack and pinion is usually classified according to the German standard DIN. The following is a brief description of DIN 6, DIN 6A, DIN 8 and DIN 9.
1. Accuracy Level of Helical Rack and Pinion
- DIN 6
Description: It has stricter manufacturing and inspection standards, and the allowed dimensional tolerance and tooth profile tolerance are smaller. It belongs to a higher accuracy level and is suitable for transmission systems requiring higher accuracy.
Application: It is often used in high-precision mechanical equipment, such as CNC machine tools.
- DIN 6A
Description: It is slightly looser than DIN 6, but still maintains high accuracy.
Application: It is suitable for applications that require high accuracy but can tolerate certain errors.
- DIN 8
Description: Compared with DIN 6A, this standard has higher gear accuracy and smaller tolerances on tooth profile and pitch. Medium accuracy level, suitable for most industrial applications.
Application: It is widely used in general mechanical transmission systems and is suitable for occasions with balanced requirements for cost and accuracy.
- DIN 9
Description: The deviation of size and tooth profile is small, suitable for most general applications. It belongs to a lower accuracy grade and is suitable for applications with low accuracy requirements.
Application: Suitable for low-cost, high-volume applications, such as some ordinary mechanical equipment.

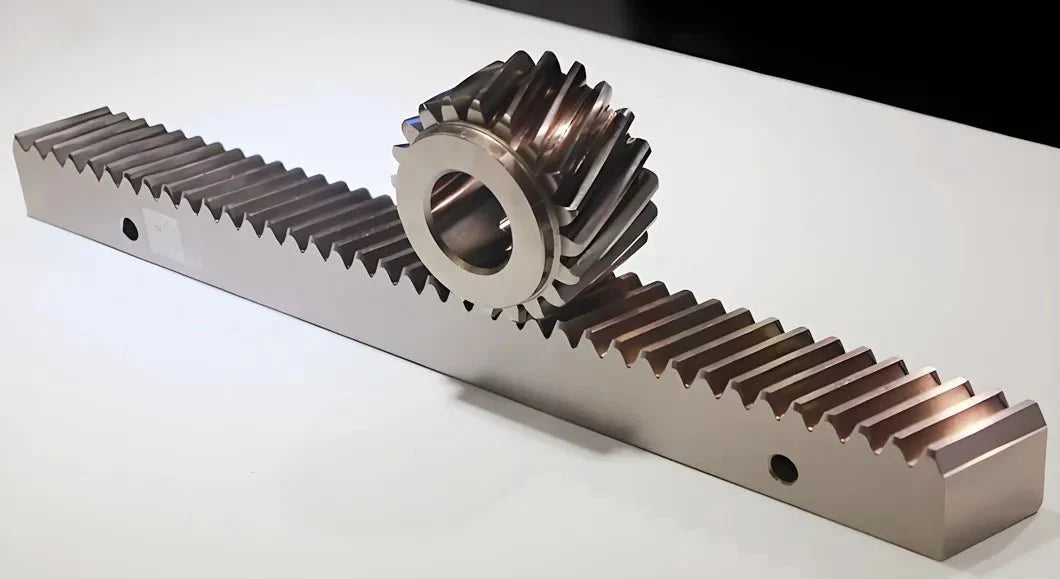

How Accurate is a Helical Rack and Pinion?
2. Factors Affecting Accuracy
Tooth profile error: Including the profile of the tooth profile and the smoothness of the tooth surface.
Pitch error: The consistency of the tooth pitch is crucial to the meshing performance of the gear.
Axial and radial runout: affects the running smoothness and noise level of the gear.
Materials and processing technology: The selection of materials and processing accuracy directly affect the overall accuracy of the gear.
3. Selection Suggestions
When selecting the accuracy grade of the helical rack and pinion, the following factors should be considered comprehensively:
Application requirements: Select the appropriate accuracy grade according to the accuracy requirements of the specific application.
Cost: Higher accuracy grades are usually accompanied by higher manufacturing costs.
Load conditions: Under high load conditions, it may be necessary to select higher accuracy gears to ensure reliability.
Summary
Selecting the appropriate helical rack and pinion accuracy grade is a key factor in ensuring the performance and reliability of the mechanical system.
The higher the accuracy grade of the rack, the higher the manufacturing cost is usually, but it will also perform better in terms of performance, noise and durability.
The selection of accuracy grade should be considered based on the specific application, load requirements and budget.
