Linear gears are an important mechanical transmission device that is widely used in automation, robotics, CNC machine tools and other fields. Its main function is to convert rotational motion into linear motion, thereby achieving precise linear movement. This article will explore in detail the working principle, construction, application and importance of linear gears in modern industry.
1. Basic Construction of Linear Gears
Linear gears are mainly composed of two parts: gears and racks. A gear is a circular mechanical component that usually has multiple teeth; while a rack is a long strip of components with teeth matching the gear on the surface. The rotation of the gear is achieved by meshing its teeth with the teeth of the rack, so that the rack moves in a linear direction.
- Gears
Gears can be designed in many forms, the most common of which are spur gears and helical gears. The teeth of spur gears are parallel to the axis, while the teeth of helical gears are inclined. Helical gears can provide smoother transmission when meshing and are suitable for high-load and high-speed applications.
- Racks
The length of the rack can be customized as needed, usually in a straight shape. The tooth shape of the rack matches the tooth shape of the gear to ensure good meshing. The material of the rack is usually wear-resistant metal or plastic to increase its service life.
2. Working Principle
The working principle of linear gears can be understood through the following steps:
- Power Input
The power of the linear gear system usually comes from a motor or other power source. When the motor starts, its rotational motion is transmitted to the gear through a coupling or other transmission device.
- Gear Rotation
The rotation of the motor causes the gear to start rotating. The speed and direction of the gear rotation are determined by the speed and direction of the motor. The rotation of the gear generates a driving force for linear motion.
- Meshing of Gear and Rack
When the gear rotates, its teeth mesh with the teeth of the rack. The teeth of the gear push the rack forward or backward during the meshing process. This process is achieved through mechanical contact between the teeth of the gear and the teeth of the rack.
- Linear Motion Output
Through the rotation of the gear, the rack obtains linear motion. The moving distance of the rack is proportional to the rotation angle of the gear, and the specific relationship depends on the gear and rack gear ratio. By adjusting the size of the gear and the length of the rack, different linear motion speeds and distances can be achieved.

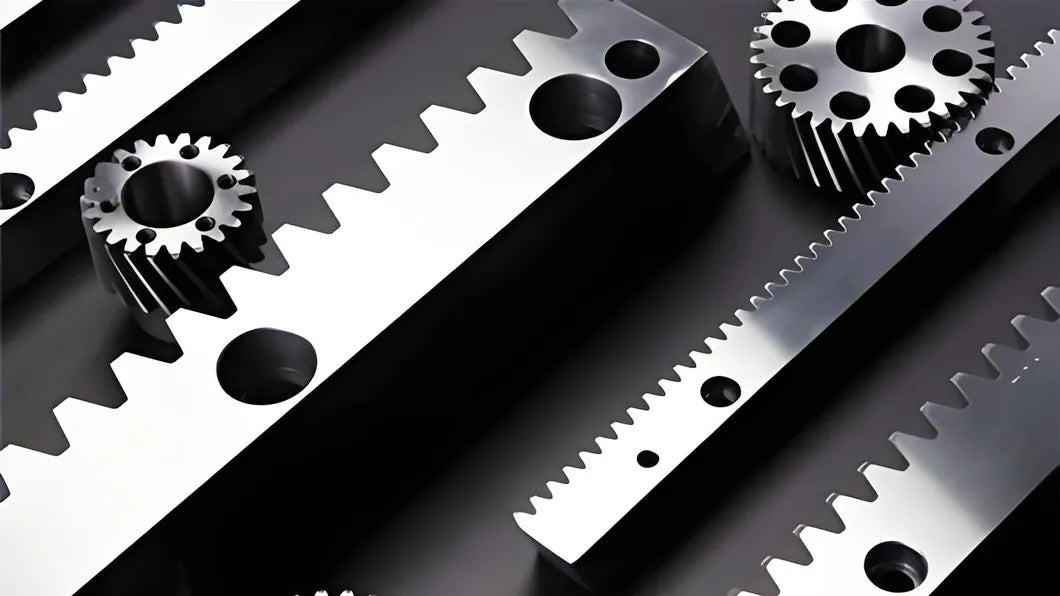

How Do Linear Gears Work?
3. Advantages of Linear Gears
Linear gear systems have many advantages that make them very popular in industrial applications:
- High Precision
Linear gears can provide high-precision linear motion and are suitable for applications that require precise positioning, such as CNC machine tools and robots.
- High Efficiency
Linear gears have high transmission efficiency and can effectively transfer power from the motor to the load, reducing energy loss.
- Strong Load Capacity
Linear gear systems can withstand large loads and are suitable for applications in heavy machinery and industrial equipment.
- Simple Maintenance
The structure of linear gears is relatively simple, and the difficulty of maintenance and replacement of parts is relatively low, which can reduce downtime.
4. Application Fields
Linear gears are widely used in many fields:
- Automation Equipment
In automated production lines, linear gears are used to drive equipment such as conveyor belts and robotic arms to achieve automatic handling and processing of materials.
- Robots
In robotics, linear gears are used to control the movement and operation of robots to ensure their precise positioning in space.
- CNC Machine Tools
In CNC machine tools, linear gears are used to achieve precise movement of tools to ensure processing accuracy and surface quality.
- Medical Equipment
In some medical equipment, linear gears are used to drive scanners, surgical instruments, etc. to achieve precise operation and positioning.
5. Future Development Trends
With the advancement of science and technology, the design and manufacturing technology of linear gears are also developing. In the future, linear gears may develop in the following directions:
- Material Innovation
The application of new materials will improve the wear resistance and strength of linear gears and extend their service life.
- Intelligence
Combined with sensors and control systems, linear gears will achieve a higher level of intelligence and be able to automatically adjust motion parameters based on real-time feedback.
- Miniaturization
With the development of miniaturization technology, linear gears will be widely used in small devices and portable tools to meet the growing market demand.
Summary
As an important mechanical transmission device, linear gears have a simple and efficient working principle. By converting rotational motion into linear motion, linear gears play an indispensable role in modern industry. With the continuous advancement of technology, the application field of linear gear will be further expanded, and their performance and efficiency will continue to improve. Understanding the working principle of linear gears will help us better apply and maintain this important mechanical equipment.
