In automated equipment, industrial robots, CNC machine tools, and heavy-duty conveyor systems, motors must deliver sufficient torque to drive loads reliably.
However, achieving high torque involves more than simply selecting a motor with higher power output. Factors such as rotational speed, load inertia, duty cycle, control precision, and installation space all influence the final choice.
This article introduces common types of high torque motors and explains how to select the right motor for specific applications.
What is a High Torque Motor?
A high-torque motor is one capable of generating significant rotational force during startup, acceleration, or continuous operation.
Torque refers to a motor's ability to rotate a load and is typically measured in Newton-meters (N·m). Generally, higher torque indicates a stronger ability to drive heavy loads or overcome resistance.
The relationship between torque, power, and rotational speed can be expressed as:
Torque (N·m) = 9550 × Power (kW) ÷ Speed (rpm).
For a given power output, lower rotational speeds generally yield higher torque. Consequently, many high-torque systems utilize low-speed motors or employ gear reducers to lower the speed while amplifying the output torque.
Which Motors are Best Suited for High Torque Applications?
There is no single motor type that fits every high-torque application; the choice depends on specific requirements—such as starting torque, continuous torque, precision control, or low-speed direct drive. Common high torque motors include the following types:
1. Servo Motors
Servo motors offer high torque density, rapid response, and precise position control. They are typically equipped with encoders to monitor the motor's position, speed, and operating status in real-time.
They are particularly well-suited for automated equipment and applications involving frequent changes in load and speed. They can also deliver peak torque exceeding their rated torque during brief periods of acceleration or deceleration.
Key Advantages
- Precise positioning;
- Fast dynamic response;
- Stable low-speed operation;
- High peak torque capability;
- Suitable for closed-loop control;
- Capable of handling frequent start-stop cycles and speed variations.
If the equipment requires both high torque and high precision, a servo motor is often the most suitable choice.
2. Stepper Motors
Stepper motors convert electrical pulses into fixed-angle rotational movement. They can generate high holding torque at low speeds, and their control is relatively simple.
Stepper motors are suitable for positioning applications involving low speeds, stable loads, and cost constraints. However, output torque typically drops significantly as rotational speed increases. Open-loop systems may experience "lost steps" (step loss) under overload conditions.
Key Advantages
- High low-speed torque;
- High holding torque;
- Simple positioning control;
- Relatively low cost;
- Ability to maintain position while stationary.
Stepper motors are suitable for small automation equipment, 3D printers, lightweight linear stages, and low-speed positioning mechanisms. If the load varies significantly or step loss is unacceptable, consider closed-loop stepper motors or servo motors.
3. Geared Motors
A geared motor consists of a motor and a reduction gearbox. The gearbox reduces the output speed while amplifying the output torque.
The formula for calculating theoretical output torque is:
Output Torque = Motor Torque × Gear Ratio × Transmission Efficiency
For example, if the motor torque is 10 N·m, the gear ratio is 10:1, and the transmission efficiency is 90%, the output torque would be approximately 90 N·m.
Key Features
- Capable of delivering high output torque;
- Flexible structural configuration;
- Suitable for low-speed, heavy-load operation;
- Compatible with AC motors, DC motors, or servo motors;
- Costs are generally easier to manage compared to large direct-drive motors.
Common Applications
- Conveyors;
- Mixing equipment;
- Lifting mechanisms;
- Industrial turntables;
- Packaging lines;
- Warehouse equipment.
When selecting a geared motor, it is essential to check the gearbox's rated torque, peak torque, backlash, and transmission efficiency; output capability cannot be determined solely by the gear ratio.
4. Permanent Magnet Synchronous Motors
Permanent magnet synchronous motors utilize magnetic fields generated by permanent magnet materials and generally offer high power and efficiency. Compared to standard induction motors, they maintain superior torque performance even during low-speed operation.
Key Features
- High energy efficiency;
- High torque density;
- Relatively compact structure;
- Wide adjustable range;
- Suitable for continuous operation;
- Compatible with variable frequency drives (VFDs) for precise control.
If equipment requires long-term continuous operation and prioritizes energy efficiency and a compact footprint, permanent magnet synchronous motors (PMSMs) are a preferred choice.

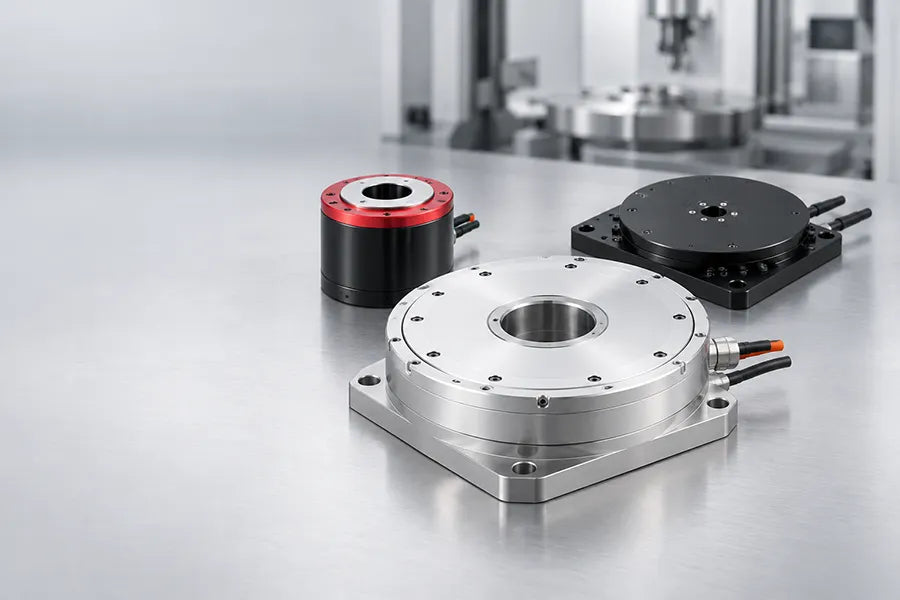

5. Direct Drive Torque Motors
Direct-drive torque motors can output high torque directly at low speeds. They eliminate the need for gearboxes, allowing for direct connection to the load.
By removing intermediate transmission components like gears and couplings, direct-drive systems reduce backlash, mechanical wear, and transmission errors.
Key Advantages
- High low-speed torque
- No gearbox required
- Minimal backlash
- High positioning accuracy
- Simple drive structure
- Stable operation and low noise
Direct-drive torque motors are suitable for equipment requiring high precision, low-speed stability, and low maintenance; however, the cost of the motor and drive system is typically higher.
How to Choose the Right High-Torque Motor?
When selecting a high-torque motor, do not rely solely on the maximum torque listed on the product page. The following parameters are more critical:
1. Calculate the Required Load Torque
First, calculate the torque the motor must handle during various operating stages, including:
- Torque to overcome friction;
- Torque to lift or rotate the load;
- Torque to accelerate the load;
- Torque from external resistance;
- Transmission system losses;
- Starting or shock loads.
For rotary systems, acceleration torque depends on the moment of inertia and angular acceleration. The heavier the load and the shorter the acceleration time, the more torque the motor must provide.
A reasonable safety factor should be included, but a higher safety factor is not necessarily better. An oversized motor merely increases costs, weight, energy consumption, and control complexity.
2. Distinguish Between Continuous Torque and Peak Torque
Continuous torque is the torque the motor can output consistently without overheating.
Peak torque can only be delivered during startup, acceleration, or short-term overload conditions. If the equipment requires driving a heavy load over the long term, the motor should be selected based on continuous torque. If the application requires high torque only during startup, the decision can be based on a combination of peak torque and the allowable duration.
Peak torque cannot be used directly as the motor's continuous operating torque.
3. Determine Operating Speed
Motor torque varies with speed, so it is necessary to consult the complete torque-speed curve.
A motor might deliver high torque at low speeds but experience a rapid drop in torque at high speeds. This is particularly true for stepper motors; looking solely at holding torque does not reflect actual operational capability.
4. Determine if a Gear Reducer is Needed
If the application requires low speed and high torque, a gear reducer can be used to amplify the motor's output torque.
However, gear reducers also introduce certain factors:
- Transmission efficiency loss;
- Backlash;
- Noise and vibration;
- Maintenance requirements;
- Additional installation space;
- Reduced output speed.
For precision positioning systems, low-backlash planetary gear reducers are a suitable choice. If the application demands extremely low backlash, a direct-drive torque motor may be considered.
5. Consider Load Inertia
The motor must not only overcome the mass of the load but also drive the load through acceleration and deceleration phases.
If there is a significant mismatch between load inertia and motor inertia, the system may exhibit slow response, vibration, or control instability. Matching load inertia with motor inertia is particularly critical for servo systems.
6. Define Control Requirements
Different applications have varying requirements for control performance.
If only continuous unidirectional operation is required, an AC induction motor or a standard geared motor is suitable. If speed adjustment is needed, pairing the motor with a variable frequency drive (VFD) or a brushless DC (BLDC) drive is recommended. For precise control of position, speed, and torque, a servo motor is the better choice. If cost-effectiveness is a priority and load fluctuations are minimal, a stepper motor may be considered.
7. Review the Duty Cycle
The duty cycle determines whether the motor needs to operate continuously or intermittently.
Motors intended for continuous operation must possess sufficient rated torque and heat dissipation capabilities. Intermittent operation systems can utilize peak torque for short periods, provided that the average load and temperature rise remain within permissible limits. The following need to be confirmed:
- Duration of each operation cycle;
- Downtime;
- Starts per hour;
- Acceleration and deceleration frequency;
- Range of load variation;
- Frequent starting and stopping increases the thermal load on the motor and drive.
FAQ
1. Can a High-power Motor Provide Higher Torque?
Not necessarily. Motor torque is related to rotational speed. For the same power rating, a low-speed motor can usually provide higher torque.
2. Which Motors Offer the Highest Starting Torque?
Servo motors, permanent magnet motors, and appropriately designed DC motors can typically provide high starting torque; however, specific performance should be verified against the motor's torque-speed curve.
3. Is a Gearbox Required for High-torque Applications?
Not necessarily. Gearboxes are suitable for amplifying torque and reducing speed, but direct-drive torque motors can also output high torque directly without a gearbox.
4. Are Stepper Motors Suitable for Heavy-load Applications?
Stepper motors are suitable for low-speed applications with minimal load variation. For applications involving high speeds, heavy loads, or where step loss is unacceptable, servo motors are generally more reliable.
Summary
Selecting the right high torque motor requires a comprehensive evaluation of torque, speed, load inertia, control precision, duty cycle, and the operating environment.
If the application requires high precision and rapid response, a servo motor should be chosen. If low-speed, heavy-load operation is required, a geared motor is usually the more logical choice. If the goal is to eliminate the gearbox and achieve low-backlash motion, a direct-drive torque motor offers distinct advantages.
