Linear slide rails are indispensable motion components in modern machinery, widely used in CNC machine tools, automation equipment, precision instruments, and other fields. However, many enterprises still make common errors during the assembly process.
1. Common Failure Modes and Inspection Methods
The most common failure modes for linear slide rails include misalignment, poor lubrication, contamination, overloading, and improper preload. Each issue manifests specific symptoms—such as noise, vibration, uneven wear, or reduced accuracy—and smooth, precise motion can often be restored without replacing the entire system.
These errors not only affect equipment accuracy but also shorten the service life of the guide rails and increase maintenance costs.
1.1 Linear Slide Rail Fault Diagnosis Process
To diagnose issues with linear slide rails, a structured process should be followed: inspect surfaces, verify alignment and preload, manually test movement, and check for lubrication issues and contamination.
1.2 Diagnosis Via Sound
For instance, when inspecting a linear guide rail, a friction sound usually indicates insufficient grease. A squeaking sound may imply the rail is dry. Vibration indicates problems with preload or the mounting surface. If the carriage feels tight at one end and loose at the other, the rails may be non-parallel.
1.3 Diagnosis Via Surface Marks and Temperature
Inspect surface marks; small fragments or scratches on the raceway indicate contamination or fatigue. Rust on the rail suggests moisture ingress. If the carriage feels hot after moving a short distance, the issue is usually related to lubrication or alignment.
1.4 Checking Operational Status, Preload, and Alignment

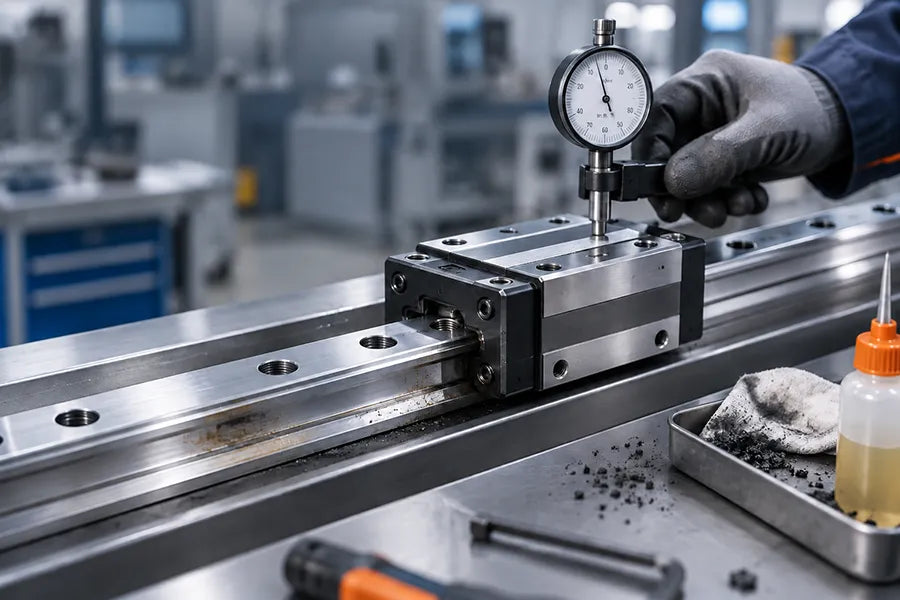

Slowly slide the linear carriage from one end to the other. If you feel bumps or resistance, it indicates component misalignment or contamination. Use a dial indicator to check the flatness of the linear slide rail to determine if the mounting surface is distorting the rail. Even an unevenness of 0.01 mm can cause problems on long rails. If the rail does not operate smoothly, slightly reduce the preload to see if performance improves. Excessive preload increases friction and wear, while insufficient preload leads to vibration and reduced accuracy.
After the machine has been running for 10–15 minutes, if the linear guide block feels warm to the touch, friction is present. If one side of the linear guide is hotter than the other, there is an alignment issue. A simple infrared thermometer is ideal for this test.
1.5 Checking Grease Condition and Contamination Levels
Dirty or dried-out grease indicates poor bearing sealing or delayed maintenance. Wipe off the old grease from the linear guide end cap and check its color: dark brown indicates overheating, gray indicates contamination, and white usually indicates the grease is still in good condition. If the issue is lubrication-related, increase the lubricant quantity and shorten the lubrication interval; for high-load applications, installing an automatic lubrication system is recommended.
1.6 Overload Faults and Solutions
Dents on the linear slide rail and broken ball bearings inside the block usually indicate excessive load, causing steel balls to dislodge from the raceway, which leads to rail cracking and progressive damage.
Solutions include switching to larger blocks, increasing the number of blocks, reducing the external load, and modifying the mounting configuration to lower the load on a single side.
2. Common Errors in Linear Slide Rail Assembly
2.1 Low Base Material Strength
The rigidity of the base directly affects the service life of the guide and the motion accuracy of the equipment. Cast iron or welded bases with insufficient rigidity (modulus of elasticity below 70 GPa) are prone to deformation, which shortens the guide's service life; low-strength materials can undergo minute displacements under load or vibration, resulting in uneven sliding. Long-term use accelerates guide wear.
2.2 Unacceptable Mounting Surface Roughness
Surface roughness should be kept within Ra 1.6 μm; otherwise, poor contact will occur. The roughness of the mounting surface directly affects the quality of contact between the guide and the base. Common issues include excessive surface roughness (Ra > 1.6 μm). Uneven contact between the guide and the base increases resistance in the sliding block. Long-term use may result in vibration or a decline in accuracy.
2.3 Loose Fastening Bolts
Failure to tighten bolts to the required torque (e.g., 20–25 N·m for M8 bolts) can cause the guide rail to shift. Incorrect tightening methods lead to issues: overtightening causes rail deformation, while loose bolts result in block instability and reduced accuracy. Relying on manual tightening based on experience rather than using appropriate torque tools is a common error.
2.4 Incorrect Block Installation or Orientation
Installing the block (linear block) in the wrong orientation increases friction and accelerates rail wear. Common issues include installing the block backward, improper adjustment of block preload, and failure to test the rail across its full range of motion after installation.
2.5 Insufficient or Uneven Lubrication
Linear slide rails rely on oil or grease to reduce friction and extend service life. Common errors include failing to add lubricant after installation, applying insufficient or uneven lubricant, and using unsuitable lubricants (e.g., using standard engine oil instead of high-performance slideway oil).
3. Post-Assembly Inspection and Maintenance
Statistics on industrial equipment failures show that over 60% of linear guide failures are caused by improper maintenance.
3.1 Parallelism Check
Periodically check rail parallelism using a feeler gauge or laser measurement.
3.2 Block Movement Check
The block should operate smoothly without abnormal noise or binding.
3.3 Lubrication and Maintenance
Replenish lubricating oil or grease promptly based on usage frequency.
3.4 Fastening Check
Bolts may loosen after a period of use; inspect and tighten them regularly.
Block Operation Check: Inspect the rail surface for scratches and rust, and check for abnormal noise or binding during block movement.
Use a feeler gauge to check the clearance between the block and the rail. If the clearance exceeds 0.03 mm, the block or rail should be replaced immediately to ensure motion accuracy.
Summary
As precision motion components, the quality of linear slide rails assemblies directly determines equipment performance and service life. Improper installation can lead to reduced equipment accuracy and frequent malfunctions. By employing correct assembly methods, using precision tools, and performing regular maintenance, the service life of guide rails can be significantly extended, ensuring the efficient operation of the equipment.
