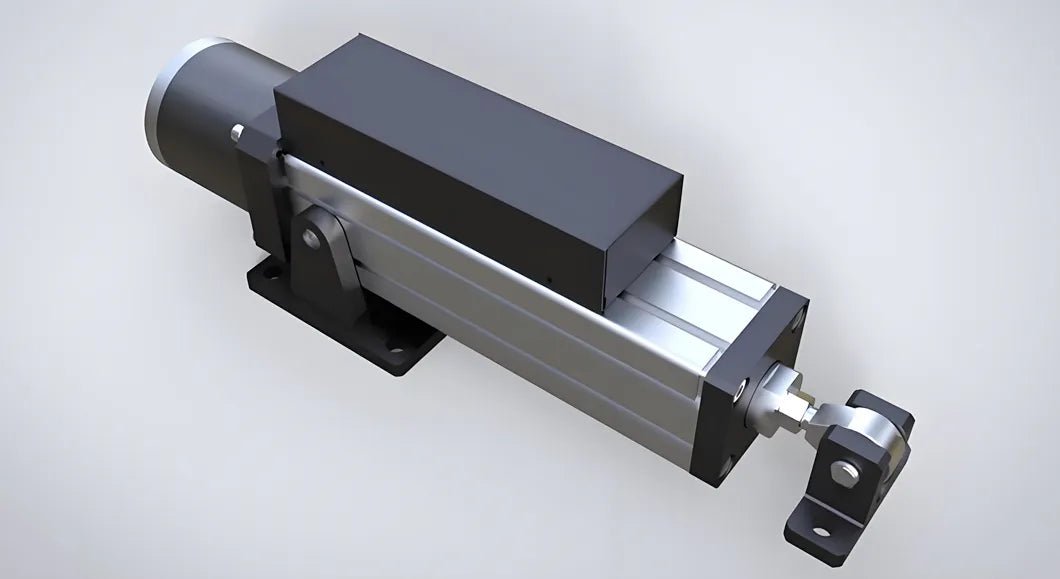

A linear stage stepper motor (a specific type of stepper motor) is an actuator that converts electrical energy into linear mechanical motion. It achieves linear displacement through precise step control and is typically used in applications that require precise control of position and speed. The working principle of a linear stepper motor is similar to that of a traditional rotary stepper motor, but the core difference is that the output is linear motion rather than rotary motion.
1. Basic Principles of Linear Stepper Motors
1.1 Stepper Control
A linear stage stepper motor operates with a certain step length (i.e., the distance moved per step). When the motor receives a control signal, it moves according to the set number of steps. By selecting the appropriate number of steps, different displacements and speeds can be achieved.
1.2 Electromagnetic Drive
A linear stepper motor usually consists of multiple windings (coils) and uses the magnetic field generated by the electromagnetic principle to interact with the permanent magnets of the stator to achieve linear motion. When current passes through different windings of the motor, a corresponding magnetic force is generated, which pushes the rotor (or slider) to move in a linear direction.
1.3 Positioning and Feedback
In many applications, linear stepper motors are used in conjunction with position sensors (such as encoders or limit switches) to achieve precise positioning and feedback control.
2. Construction of Linear Stage Stepper Motor
2.1 Stator
The stator usually consists of an electromagnetic coil and a fixed magnet, and the current passes through the coil to generate an alternating magnetic field.
2.2 Rotor
The rotor can be designed as a structure with multiple magnetic poles, which can be a permanent magnet or an iron core material.
2.3 Slider or Load
The slider is directly connected to the rotor to achieve linear motion and drive the load.
3. Advantages of Linear Stepper Motor
3.1 High precision
It can achieve high-precision positioning control and is suitable for occasions where accurate displacement is required.
3.2 Simple control
Due to the use of stepper control, the control system is relatively simple and can be achieved using pulse signals.
3.3 No feedback control
In many cases, linear stage stepper motors can operate without a complex feedback system, but in occasions where extremely high precision is required, it is more ideal to cooperate with a feedback system.
4. Application of linear stepper motors
Linear stepper motors are widely used in various fields that require precise linear motion, such as:
Automation equipment: such as automatic feeding devices, laboratory equipment, etc.
Robots: Operations in assembly lines and collaborative robots.
Medical equipment: such as blood analyzers, injection systems, etc.
Laser cutting machines and printers: used to accurately control the movement of tools or print heads.
5. Disadvantages of Linear Stepper Motors
Although linear stage stepper motors have many advantages, they also have some disadvantages:
Vibration and noise: When running at low speed, linear stepper motors will generate vibration and noise.
Torque reduction: When running at high speed, the output torque will decrease.
Heat: Long-term operation may cause heat and affect its performance.
Summary
Linear stage stepper motors are electric motors that convert electrical energy into linear motion, which can achieve precise position control and are widely used in automation and precision equipment. Its working principle is based on electromagnetic drive and stepper control, which makes it perform well in many occasions that require high precision and simple control. Although there are some limitations, these shortcomings can be effectively overcome through reasonable design and control.
