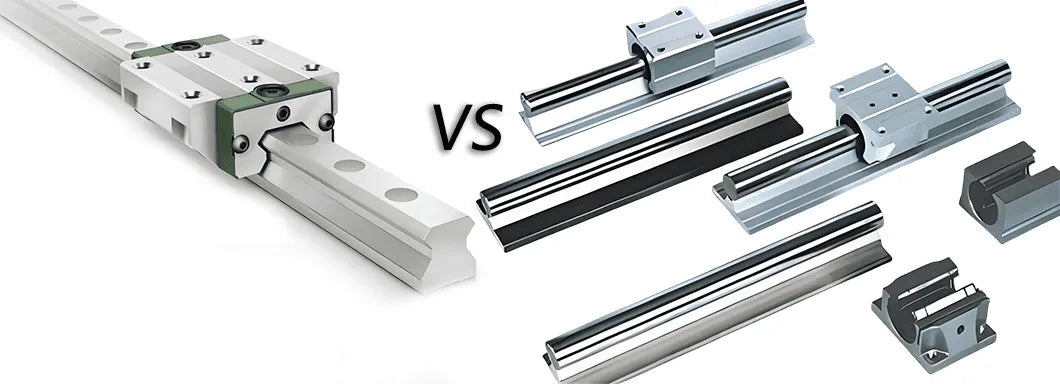

What is the Difference Between a Linear Rod and a CNC Linear Guide Rail?

Linear rods and CNC linear guide rails are two types of linear motion components commonly used in mechanical engineering and automation. They have significant differences in structure, application and function. Here are the main differences between them.

1. Structure

• Straight Rod

Usually simple cylindrical or square rods, used primarily to provide the basis for linear motion.
The surface of the linear rod is generally smooth to match the slider or other moving parts.
The material of the linear rod is usually steel or aluminum alloy, which has certain rigidity and strength.

• CNC Linear Guide Rail

Consisting of a guide rail and a slider, the guide rail is usually a long, precision-machined component with a ground or hardened surface to ensure high precision and low friction.
The slider has built-in rolling elements (such as balls or rollers) that can move smoothly on the guide rail, providing higher movement accuracy and load-bearing capacity.
The design of CNC linear guides is usually more complex and may include multiple guide rails and multiple slides to achieve greater stability and load capacity.

2. Movement Accuracy

• Straight Rod

The movement accuracy is relatively low and is suitable for applications that do not require high accuracy.
Linear rod movement may be somewhat restricted due to friction and alignment issues.

• CNC Linear Guide Rail

Provides high-precision linear motion, suitable for CNC machine tools, automation equipment and other applications that require high precision.
The use of rolling elements greatly reduces friction and improves the smoothness of movement and repeatable positioning accuracy.

3. Application Scenarios

• Straight Rod

It is often used in simple mechanical devices, transmission systems, robotic arms, etc., where accuracy and load-bearing capacity are not required.
Suitable for some light load linear motion applications.

• CNC Linear Guide Rail

Linear guide is a mechanical guide device with high rigidity and high precision that can achieve linear motion in a plane. In CNC machine tools, linear guides are widely used on various motion axes, such as X-axis, Y-axis and Z-axis. They cooperate with the guide rail through balls or rollers to achieve precise positioning and high-speed movement of the machine tool spindle and workpiece cutter.
It is widely used in high-precision, high-load applications such as CNC machine tools, laser cutting machines, 3D printers, and automated production lines.
Ideal for applications requiring high speed, high acceleration and high repeatability.

4. Carrying Capacity

• Straight Rod

The load carrying capacity is relatively low and suitable for light load applications.
May be affected by bending and deformation.

• CNC Linear Guide Rail

Through careful selection of high-precision guide rail materials and optimized structural design, linear guide rails can withstand large loads and inertial forces, ensuring the stability and accuracy of machine tools during high-speed and heavy-load processing. This kind of stability and precision is crucial to modern manufacturing because it can effectively reduce vibration and deformation, thereby improving processing accuracy and surface quality, bringing higher production efficiency and competitiveness to the manufacturing industry.
Designed to withstand larger loads and maintain stable motion performance under high loads.
The design of the rolling elements makes them superior in terms of load-bearing capacity and smooth movement.

5. Installation and Maintenance

• Straight Rod

Installation is relatively simple and maintenance is relatively easy, but regular lubrication is required to reduce friction.

• CNC Linear Guide Rail

Installation is complex and often requires precise alignment to ensure smooth and precise movement.
Pay attention to cleaning and lubrication during maintenance to prevent contaminants from affecting sports performance.

6. Movement Speed

• Straight Rod

Linear rods typically move at speeds ranging from a few millimeters per second to several meters per second, depending on load, friction and drive method.
Under higher load conditions, speed may be significantly reduced.

• CNC Linear Guide Rail

By using the precise cooperation of balls or rollers with guide rails, linear guides greatly reduce friction and rolling resistance, and the movement speed can reach several meters per second or even higher, especially in high-performance CNC equipment and automation systems. It provides strong support for the high-speed movement of CNC machine tools.
When optimally designed and properly lubricated, linear guides are capable of faster acceleration and deceleration.

Summary

There are obvious differences between linear rods and CNC linear guides in terms of structure, motion accuracy, application scenarios, load-bearing capacity, installation and maintenance. The choice of component depends on the specific application needs and motion performance requirements. In applications requiring high precision and high loads, CNC linear guide rails are a more suitable choice, while in simple linear motion needs, linear rods may be a more economical solution.
