Precision Ground Toothed Rack DIN 6 Grade

Precision Ground Toothed Rack DIN 6 Grade

Type
Module
Material

Precision ground racks, especially DIN Grade 6 toothed racks, are high-quality linear motion components used in a variety of mechanical systems. DIN Grade 6 precision ground toothed racks are essential components in high-precision applications, providing reliable and accurate linear motion. Their tight tolerances and durable construction make them suitable for demanding industrial environments.

Ver todos los detalles

Product Features

  • DIN6 grade toothed racks are precision ground, and the tolerances of tooth shape.
  • The grinding process makes the rack surface smooth, reduces friction.
  • Made of high-strength material, it can withstand heavy loads.
  • Precision ground toothed racks have good stability during operation.
  • Suitable for various precision mechanical equipment.
  • Due to the high precision and good surface treatment of the rack.

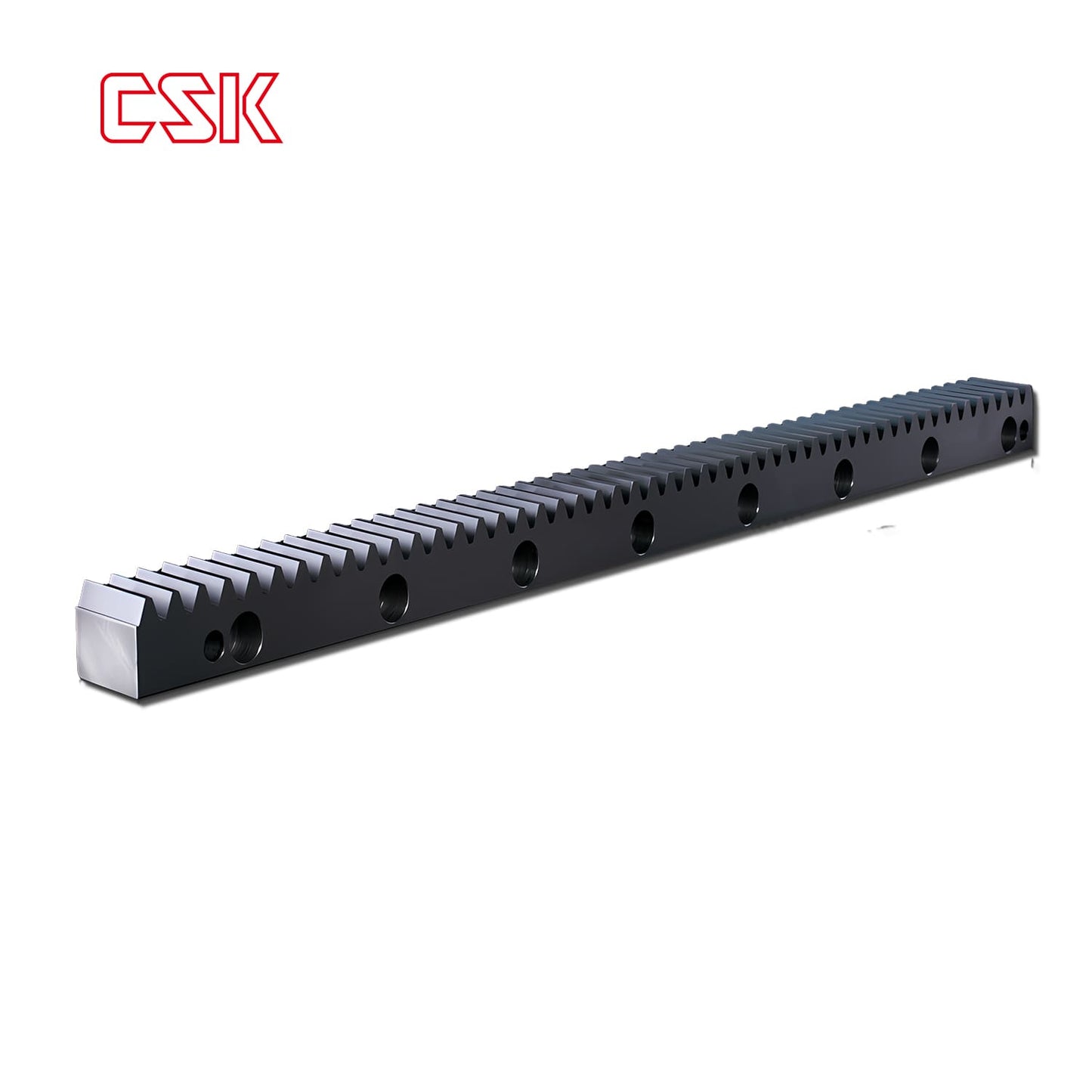

precision ground toothed rack DIN6

Specification parameter of precision ground toothed rack DIN6

Click the download button below to get the specification sheet of the precision ground toothed rack DIN6.

Click to download PDF

Specification

Specification Value
Type Spur/Helical Rack
Module 1.5/2/3/4/5/6/8
Gear Grinding Accuracy German Standard DIN 6
Material C45
Hardness HRC50-55
Heat Treatment High Frequency Quenching of Teeth

Toothed Rack Work

  • The working principle of the rack is mainly based on the basic principle of gear transmission. The rack is a linear gear with a series of evenly distributed teeth. The rotating gear that cooperates with the rack is usually circular.
  • When the gear rotates, the teeth of the gear mesh with the teeth of the rack.
  • The rotational motion of the gear is converted into the linear motion of the rack through the meshing of the teeth.
  • The main function of the rack is to convert the rotational motion into linear motion, and it is widely used in mechanical transmission systems.
  • The rack can withstand large loads and is suitable for heavy loads and high precision applications.
Get Quote
  • Geometric Measurement

    Use a caliper, micrometer, or other tool to measure the length, width, and height of the toothed rack to ensure it meets the design specifications.

  • Load Testing

    Load test the toothed rack under actual working conditions to evaluate its load-bearing capacity and stability.

  • Hardness Test

    Use a Rockwell hardness tester or a Vickers hardness tester to test the hardness of the toothed rack to ensure its wear resistance.

  • Wear Resistance Test

    The wear resistance of the rack is evaluated by friction test or wear test.
