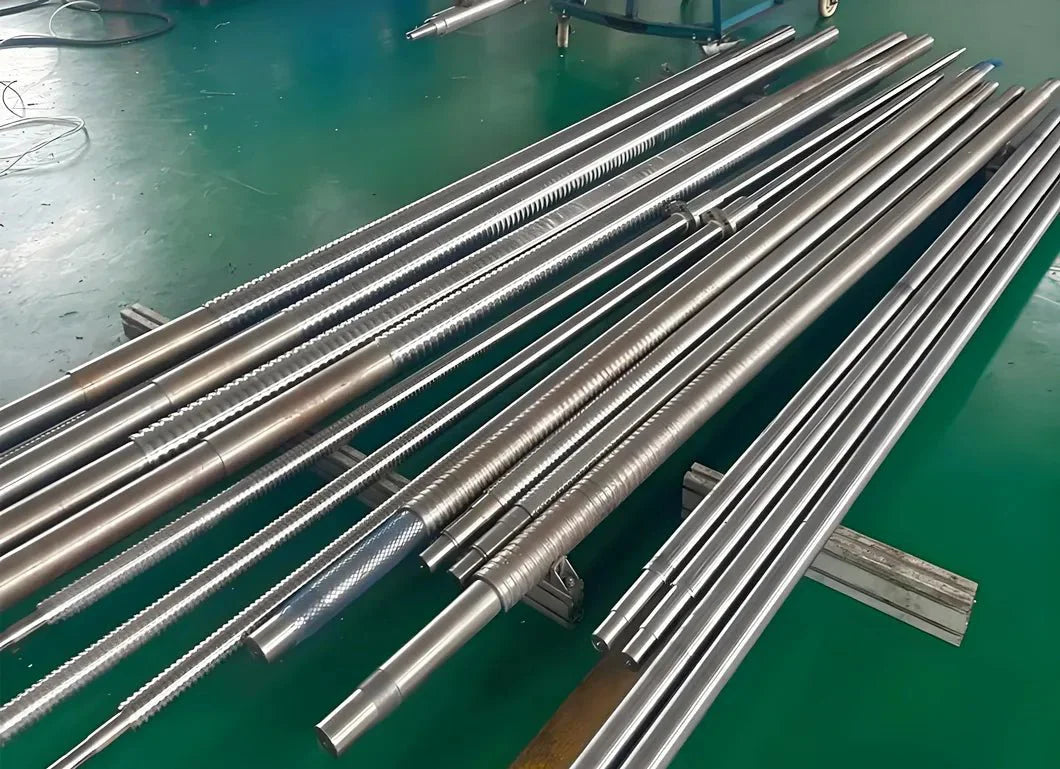

A ball screw is a mechanical device used to convert rotary motion into linear motion. It is widely used in machine tools, automation equipment, robots and other fields. Its working principle is to achieve high-efficiency and high-precision conversion through a screw (usually a cylindrical screw) and a set of balls. The following is a detailed analysis of the work of ballscrews:
1. Components
Screw: The screw is a spiral cylinder with an external thread. It is usually made of high-strength steel to ensure durability under high loads.
Ball nut: The ball nut is a component with a raceway inside, and the balls roll inside it. It fits tightly with the screw and achieves movement through rolling contact between the balls and the grooves of the screw.
Ball: The balls are located between the screw and the nut to reduce friction and promote smooth movement. The number and size of the balls will vary depending on the design requirements.
Guides and supports: In some applications, ballscrews may also have guides and support components to ensure the stability and accuracy of the system.
2. Working Principle
- Rotational motion
When the screw rotates (usually driven by a motor), the rotation of its external threads causes the balls to move accordingly.
- Ball rolling
The balls roll freely between the screw thread groove and the nut raceway. When the screw rotates, the balls move in a certain direction, driving the nut to move linearly along the screw.
- Linear motion generation
Due to the shape of the thread and the contact between the balls, the rotational action is directly converted into linear motion. The rolling characteristics of the balls significantly reduce the friction of this step and greatly improve the efficiency.
- High efficiency and precision
Due to the use of rolling contact, the friction loss of the ballscrew is relatively small, and the transmission efficiency is usually as high as more than 90%. This means that the required power is reduced and the energy loss is low. At the same time, due to the precise fit between the nut and the ballscrews, high positioning accuracy can be achieved.
3. Advantages of Ballscrews
- High efficiency
Compared with traditional rolling screws, ball screws provide higher efficiency and can operate under load.
- Low friction
Sliding friction is reduced to rolling friction, which reduces energy loss and improves the overall efficiency of the system.
- High precision
Due to its structure and working principle, the ball screw can achieve high-precision linear positioning.
- Strong load-bearing capacity
In theory, the design of the bearing enables it to withstand large loads.
- Availability
Widely used in various scenarios that require precise control, such as machine tools, automation equipment, robots and CNC machine tools.
4. Applications
- CNC machine tools: Used for precise positioning and movement of tools.
- 3D printers: As a drive for motion platforms.
- Automated production lines: In material transmission and equipment positioning.
- Robots: Realize the movement of robotic arms.
Summary
Ballscrews play an important role in modern mechanical and automation systems by effectively converting rotary motion into linear motion, combining the advantages of low friction, high efficiency and high precision. When selecting and applying ball screws, it is crucial to consider their load capacity, precision and appropriate materials to ensure their optimal performance in specific applications.
