Proper installation and alignment of spur racks is essential for the efficient and reliable operation of mechanical systems. Here are the key installation and alignment requirements:
1. Installation Requirements
1.1 Preparation
Clean the mounting area: Make sure the mounting surfaces for the rack and pinion are clean and free of debris. This helps prevent uneven wear and damage.
Inspect the mounting surface: Make sure the surface to which the rack is mounted is flat and level. Any irregularities may affect alignment.
1.2 Mounting the Rack
Securely mount: The rack should be securely mounted with bolts or screws at appropriate spacings. Make sure the mounting hardware is the correct size and strength.
Spacing: Make sure the spur rack is properly spaced from any adjacent components to avoid interference during operation.
1.3 Tightening
Torque specifications: Follow the manufacturer's specifications for tightening bolts or screws. Overtightening can cause deformation, while undertightening can cause the rack to loosen or shift.
Use washers: If specified by the manufacturer, use washers to distribute the load and avoid damage to the mounting surface.
2. Alignment Requirements of Spur Rack
2.1 Initial Alignment
Check rack straightness: Make sure the rack is straight and free of any bends or twists. This can be verified with a straightedge or laser alignment tool.
Alignment with the pinion: The centerline of the pinion should be parallel to the centerline of the rack. This is critical for smooth operation and to prevent excessive wear.
2.2 Tooth Engagement
Quality of engagement: The pinion and spur rack teeth should mesh smoothly without any play or excess pressure. Uneven engagement can cause noise and premature wear.
Checking backlash: Make sure there is the proper backlash (the tiny gap between the teeth) according to the manufacturer's specifications. Too little backlash can cause sticking, while too much can reduce accuracy.
2.3 Parallelism and Perpendicularity
Parallel alignment: Make sure the rack is parallel to the axis of rotation of the pinion. Misalignment can cause uneven load distribution and increased wear.
Perpendicularity check: The rack should be perpendicular to the axis of the pinion if the application requires this alignment. Misalignment here can cause operational problems.
2.4 Use of Tools

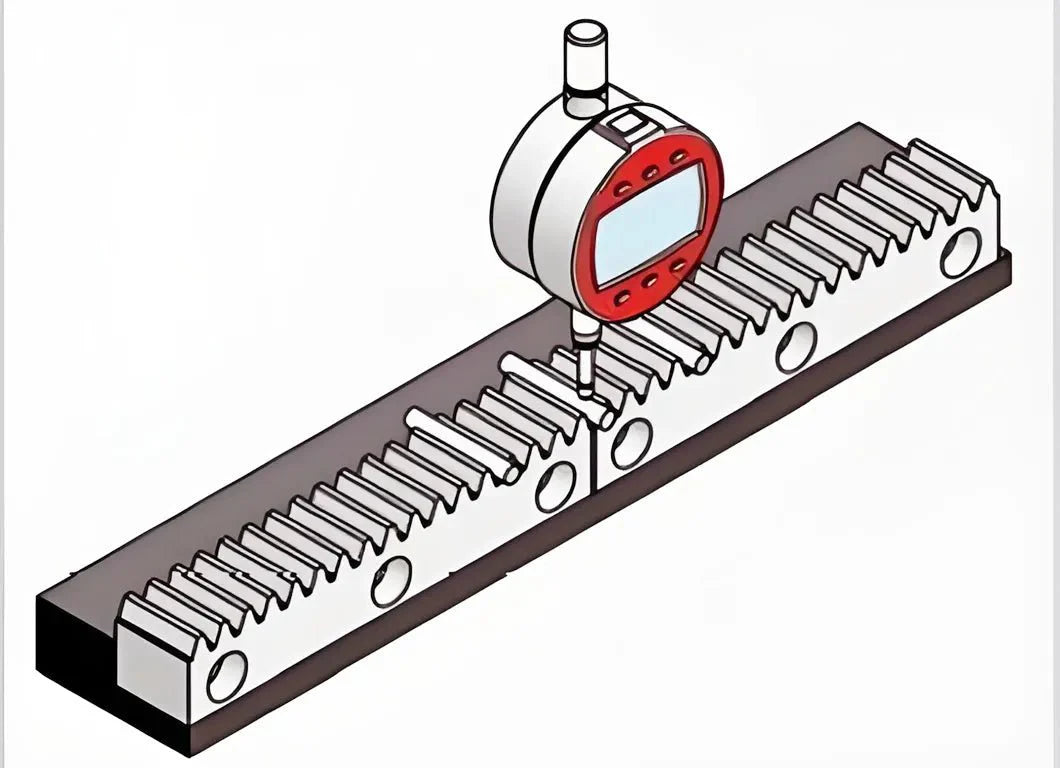

Alignment tools: Use precision tools such as a dial gauge, laser alignment tool, or micrometer to check and adjust alignment. Manual methods such as a straightedge or machinist's level can also be used for preliminary checks.
Shimming and adjustment: If necessary, use shims to adjust the position of the rack or pinion to achieve the desired alignment.
2.5 Final Inspection
Operational Test: After installation and alignment, manually move the pinion through its full range of motion to ensure smooth operation and proper meshing between the rack and pinion.
Adjustment: Make any necessary fine adjustments based on the operational test to achieve optimal performance.
2.6 Lubrication
Apply Lubricant: Ensure that the spur rack and pinion are properly lubricated to minimize friction and wear. Follow the manufacturer's recommendations for lubricant type and amount.
2.7 Monitoring and Maintenance
Periodic Inspection: Check the alignment and condition of the rack and pinion regularly, especially if there is a change in operating performance.
Adjustment: Make adjustments as needed based on wear patterns and operational feedback.
Summary
By carefully following these installation and alignment requirements, you can ensure that your spur rack and pinion system operates efficiently, with minimal wear and optimal performance.
